HL7 vs FHIR: A Complete Guide to Choose the Right Healthcare Data Standard

When comparing HL7 vs FHIR, HL7 works more effectively when you need to integrate with existing hospital systems or legacy EHR systems. On the other hand, FHIR will be a better fit when developing a new generation of scalable, interoperable healthcare apps with a fast time-to-market approach.

HL7(Health Level Seven) is a set of interoperability standards that was developed by a not-for-profit organization, Health Level Seven International, in 1987. It allows healthcare systems and applications from different providers to effortlessly exchange information.

HL7 v2 is the oldest and most widely used version of HL7. It uses a text-based format where fields are separated by symbols such as pipes and carets. It was designed to be flexible so hospitals could customize it to their needs, which made it popular. However, this flexibility also made implementations more complex and created interoperability challenges between systems.

Built to fix v2’s inconsistencies using a more structured model called RIM (Reference Information Model), HL7 v3 aimed for cleaner, more precise data sharing. But it was complex and hard to implement, so it never fully replaced v2. One of its most successful outcomes was CDA, which became widely adopted for exchanging clinical documents.

CDA (Clinical Document Architecture) is a standard used to structure clinical documents like discharge summaries and care plans.

C-CDA (Consolidated Clinical Document Architecture) combines multiple CDA implementation guides into a single standard for exchanging documents such as care summaries, discharge notes, and referral documents.

• FHIR is the main focus. Most new HL7 development now happens around FHIR instead of v2 or v3.
• HL7 v2 and FHIR work together better. New guides help convert HL7 v2 messages into FHIR resources.
• Better document mapping. C-CDA documents can now be mapped more easily to FHIR.
• Shared solutions for common challenges. Groups like the HL7 Da Vinci Project and CARIN Alliance create implementation guides for real-world use cases.
• More standard terminology support. Greater use of code systems like SNOMED CT, LOINC, and RxNorm improves data consistency.

FHIR (Fast Healthcare Interoperability Resources) is the newest HL7 standard for sharing health data, first released in 2014. It was built for the modern web, so it works naturally with mobile apps, cloud platforms, and current healthcare software.

What it does is break health data into small pieces called resources, like a patient, a lab result, or a medication. These resources can be used independently or combined when needed.

The development of FHIR is related to the “Fresh Look” project by HL7 in 2011, where an engineer, Grahame Grieve, suggested a proposal that was initially named “Resources for Health.” The first draft was published in 2014, and there have been a number of updates since then.

FHIR uses REST APIs, the same technology that most modern websites and apps use. This makes it easier for developers to build tools that pull or send health data.

FHIR data can be written in JSON, XML, or RDF. JSON is the default most developers use day to day, XML fits stricter validation needs, and RDF mainly serves linked-data or research use cases. So while all three are supported, JSON is what you’ll work with in almost every real-world FHIR integration.

In the United States, agencies such as ONC and CMS have accelerated FHIR adoption by requiring certain healthcare providers and insurers to make patient data available through FHIR-based APIs.

The objective is clear: facilitate access to patient health records and make it simpler to share data among healthcare systems.

• New FHIR versions continue to evolve. R4 is the current production standard, R5 is available but has limited adoption, and R6 is expected in 2026–2027.
• A more stable core. R6 focuses on keeping the main parts of FHIR stable to reduce breaking changes.
• Secure app access. SMART on FHIR lets applications access data without sharing user passwords.
• Bulk data export. Healthcare organizations can export data for thousands of patients at once.
• Real-time updates. Subscriptions allow systems to receive alerts when data changes.
• Growing adoption. Regulations in the US are driving faster adoption of FHIR-based APIs.

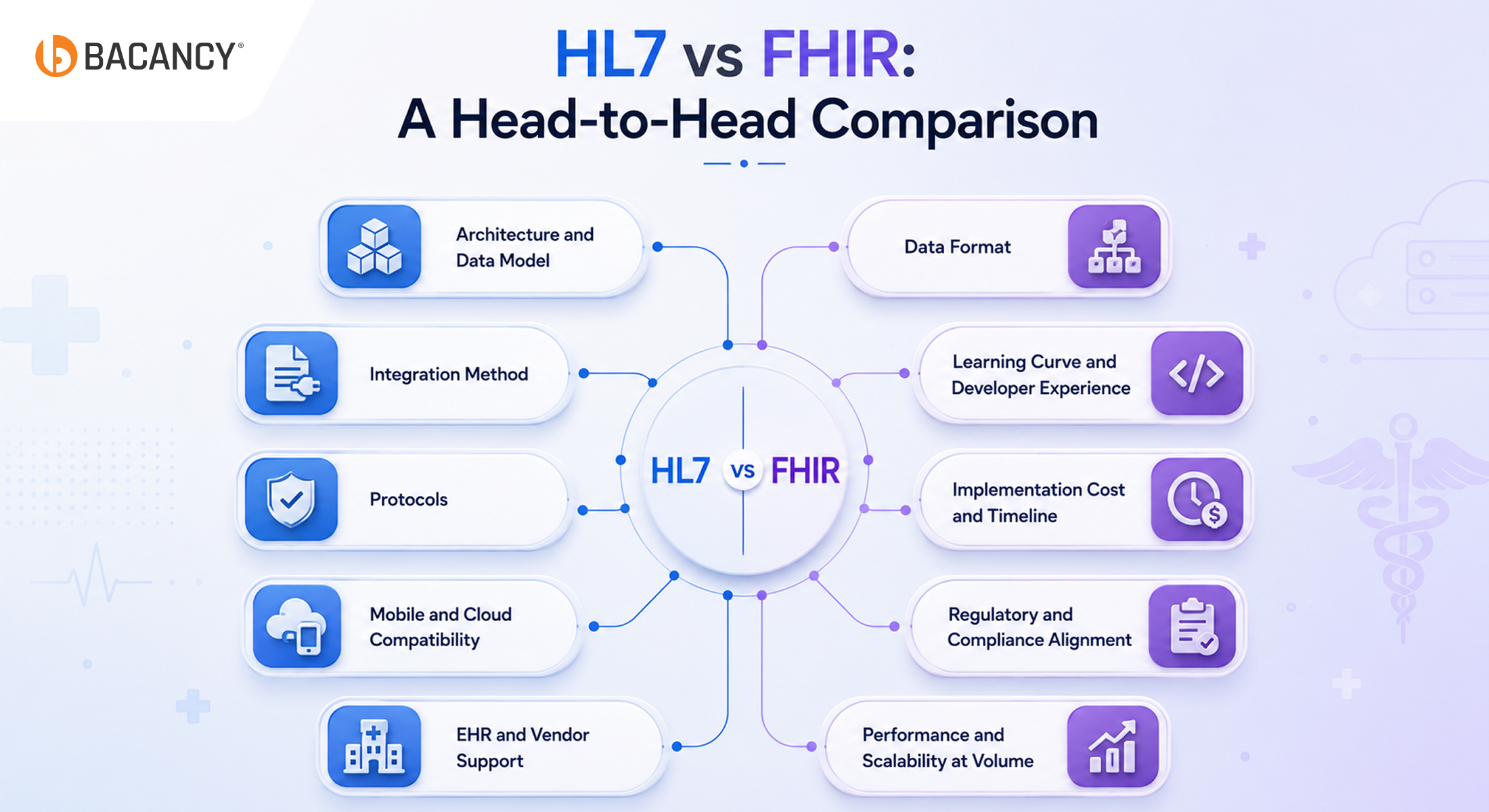

The structured analysis of HL7 and FHIR involves examining the mechanisms used by these standards to exchange information, interconnect with other systems, and support modern applications. The subsequent sections will cover both standards, FHIR vs. HL7, in terms of important aspects for the healthcare industry.

When comparing HL7 vs FHIR in terms of architecture and data model, HL7 has everything bundled into one message. When a patient is admitted, the patient details, insurance, and room number all travel together. If your app only needs the admission part, it still has to read the whole message. It also sends this once, the moment the event happens, so if you miss it, it’s gone.

With FHIR, data is split into small, separate pieces called resources, like Patient, Encounter, and Coverage. Your app just asks for the one it needs. Each resource has its own web address you can check any time, and resources link to each other, so you can move from a patient record to their visit details or insurance information easily.

If you compare HL7 vs FHIR for data formatting, HL7 v2 uses a text format using separators like | and ^. The problem is each hospital tends to use it a little differently, especially with custom fields called Z-segments, so developers have to write their own rules to read each system’s messages.

FHIR uses JSON or XML, formats developers already work with every day. Custom data goes into structured extensions that follow a set pattern, so other systems can still read it.

Between HL7 vs FHIR for integration methods, HL7 v2 usually runs through an interface engine like Mirth or Rhapsody, over a private connection inside the hospital, and the receiver system sends back a quick acknowledgement. Every new system means more setup, testing, and maintenance. It automatically sends updates to other systems when an event happens, like a patient being admitted or discharged.

FHIR works like a normal web API. You sign in, call an endpoint over the secure web (HTTPS), and get data back with a simple success message. Most teams can build it without special interface experts, and it waits for you to ask, with the option of live updates when you want them.

Comparing HL7 vs FHIR for learning curve and developer experience, in HL7 v2, software developers have to understand the healthcare industry’s specific terms such as segments, triggers, and vendor-specific messages. For many enterprises, there is no information on the configuration procedure, and setup details are poorly documented in a developer’s head or in some outdated configuration file. Hiring developers who know HL7 v2 well is challenging as well.

FHIR is easier to pick up because it uses familiar tools like APIs, JSON, and HTTP. The rules are public, and you can practice against free test environments with fake data before connecting with real systems.

Between HL7 vs FHIR for protocols, the HL7 v2 standard is a message standard with fixed message formats based on the type of event, such as ADT (admission, discharge, transfer), ORU (lab results), and ORM (orders). The HL7 v2 does not provide a transport protocol but normally uses MLLP (Minimal Lower Layer Protocol) using TCP/IP.

FHIR is resource-based, with standard REST verbs mapped to standard actions:

• GET: retrieve a resource
• POST: create a new resource
• PUT: update an existing resource
• DELETE: remove a resource
• PATCH: apply a partial update

When comparing FHIR vs HL7 in terms of cost and timeline, with HL7 v2, each new integration is basically its own project, with custom work, extra testing, and interface engines to support and maintain.

With FHIR, once you build the first integration, patterns like sign-in and error handling can be reused.

In the US, building to a shared rulebook called US Core lets you reach many systems at once, and each FHIR system publishes a menu of what it supports, so you don’t have to wait on a vendor’s document.

Note: When comparing HL7 vs FHIR, the numbers above are industry estimates for typical healthcare integrations. Actual cost and timelines vary based on system complexity, data mapping requirements, and vendor support.

When comparing HL7 vs FHIR for mobile and cloud compatibility, HL7 v2 was built before smartphones and the cloud were common. To share its data outside the hospital, you need an extra translation layer, and there’s no way for a patient to grant an app limited access.

The FHIR framework itself is based on web technologies right from the start. Mobile applications, cloud services, and third-party software are all able to interact with the system using HTTPS. There is a secure way of signing into the system, known as SMART on FHIR, where a patient grants an application access to particular data.

If you compare the best standard between HL7 vs FHIR, HL7 v2 is still widely used inside hospitals, but regulators no longer treat it as the standard for patient access APIs.

FHIR is the standard named in today’s regulations. The US government’s health-software test requires a standard FHIR API (the g(10) criterion), and CMS rules require payers to share data through FHIR APIs. Refusing to share through these APIs can count as “information blocking” under the Cures Act, which gives the rules real teeth.

HL7 v2 still runs everyday hospital tasks like admissions, lab orders, and billing. Most healthcare organizations depend on it.

Most major EHRs now offer FHIR APIs, including Epic and Oracle Health (Cerner), though the amount of data they expose varies. The catch: these APIs are strong at reading data but still limited at writing it back, so orders and results often still flow over v2 behind the scenes.

Comparing HL7 vs FHIR in present times in many organizations, FHIR frequently sits as a modern read layer on top of a v2 backbone.

HL7 v2 is a lightweight, always-on stream with very little overhead per message, which is why it still wins for steady, high-volume feeds like admissions and lab results.

FHIR is great when an app needs specific pieces of information on demand. For large pulls, like exporting records for all diabetic patients at once, it uses a bulk export that hands back big files instead of thousands of separate requests.

Now that we have seen in-depth differences between FHIR vs HL7, let’s see when we can choose either or both in different scenarios.

There isn’t a single winner in the HL7 vs FHIR debate. The right choice depends on what you’re building, who needs the data, and the systems you already have in place.

• Building a patient facing app, provider portal, or third party integration
• Your business falls under ONC or CMS interoperability rules, since FHIR is the only standard they recognize
• You need to build an API product to sell to other health systems
• Your team comes from general software backgrounds, not healthcare IT, since FHIR uses familiar REST and JSON patterns

• You’re connecting internal hospital systems like lab, pharmacy, or ADT systems.
• Your systems already run on HL7 v2 and work well.
• Replacing the existing setup would add risk without much benefit.

• You need to expose data from legacy HL7 v2 systems to a modern app
• You want to keep HL7 v2 running internally while translating that data into FHIR resources for anything external
• You need to comply with CMS or ONC rules, but replacing the underlying HL7 v2 infrastructure is not realistic right now

Beyond the technical differences between FHIR vs HL7, there are practical challenges that only show up during real implementations. Based on our experience working with healthcare clients at Bacancy, here are some of the most common considerations and pitfalls to keep in mind.

• A single HL7 v2 interface build usually takes a few weeks, covering mapping, testing, and going live.
• FHIR integrations tend to get faster after the first one, since you can reuse the same auth and error handling setup
• If you run HL7 v2, budget for ongoing engine licensing fees; they do not stop after launch.
• Vendor approval for FHIR API access can take weeks, so factor that wait time in
• Leave extra time for testing against real data, since it rarely matches the documentation exactly.

• Do not assume a vendor’s FHIR API covers everything you need; many only include the bare minimum for compliance.
• Do not underestimate how messy HL7 v2 data can be before it maps cleanly to FHIR.
• Do not skip load testing on FHIR endpoints; sandboxes often behave very differently from production.
• Do not migrate everything at once; start with one use case and expand from there.
• Do not forget FHIR versions are not all compatible, DSTU2, STU3, R4, and R5 all work a bit differently

• HIPAA applies no matter which standard you use, HL7 v2 or FHIR
• FHIR APIs usually use OAuth2, something most engineering teams already know
• SMART on FHIR builds on OAuth2 to handle things like patient context and app launches
• HL7 v2 has no built-in security, so encryption and access control have to be set up separately
• Both standards need audit logging in place from day one, since HIPAA requires tracking who accessed what and when

• HL7 v2 needs someone who understands segment structures, trigger events, and vendor quirks.
• FHIR work is closer to regular backend and API development, skills your team likely already has
• Either way, keep at least one person with healthcare interoperability experience on the team to catch edge cases.
• Plan for ongoing maintenance, not just the initial build; both standards need monitoring and updates over time

• Vendor FHIR APIs often do the bare minimum for compliance, not everything you might actually need
• Sandbox environments can act very differently from production: different limits, different data, different speed.
• Vendors do not always warn you when they change FHIR versions, which can break your integration without notice.
• Once you are past setup, troubleshooting often falls on your team, not the vendor.
• Some vendors charge extra for full FHIR access, a cost that is not always obvious during evaluation

Let’s take a closer look at a real-world case study that goes beyond the HL7 vs FHIR debate and shows how both standards can work together to modernize healthcare data exchange.

A multi-clinic health network running Epic, with lab results flowing in from three separate outside lab vendors, each sending slightly different HL7 v2 ORU^R01 messages.

The client needed to expose lab results through a FHIR API to meet the CMS Interoperability and Patient Access deadline. The catch: their three lab vendors did not send HL7 v2 messages the same way. One used LOINC codes correctly, one used internal codes that needed mapping, and one left key fields blank that their internal team had learned to work around manually for years. Any FHIR facade built on a “standard” HL7 v2 to FHIR mapping would have quietly dropped or mismatched results from two of the three vendors on day one.

• Pulled a sample set of real ORU^R01 messages from all three vendors and mapped the actual field level differences, not the differences on paper
• Built vendor specific transformation logic before the FHIR conversion layer, so each vendor’s quirks got normalized before becoming a FHIR Observation resource
• Flagged and routed incomplete messages (the ones with blank fields) to a manual review queue instead of silently publishing incomplete data to the patient app
• Built the FHIR layer itself on R4, mapping lab results to Observation resources and linking them correctly to Patient and Encounter resources
• Load tested against a full day’s peak lab volume before go live, since the client’s busiest day produces over 12,000 lab messages

• Went live on time for the CMS deadline, with correctly mapped results from all three lab vendors, not just the compliant one
• Caught and fixed a vendor data quality issue during testing that would have caused wrong lab values to show up in the patient app
• Reduced the client’s manual review workload for one vendor’s incomplete messages, since the routing logic now catches them automatically instead of a staff member noticing after the fact
• Client’s team can now onboard a fourth lab vendor using the same transformation pattern, without needing us involved.

Most FHIR migrations assume the underlying HL7 v2 data is clean and consistent. It usually is not. The real work was not writing the FHIR conversion; it was finding where three vendors quietly disagreed on how to send the same information, and building the layer that caught those disagreements before they reached a patient.
